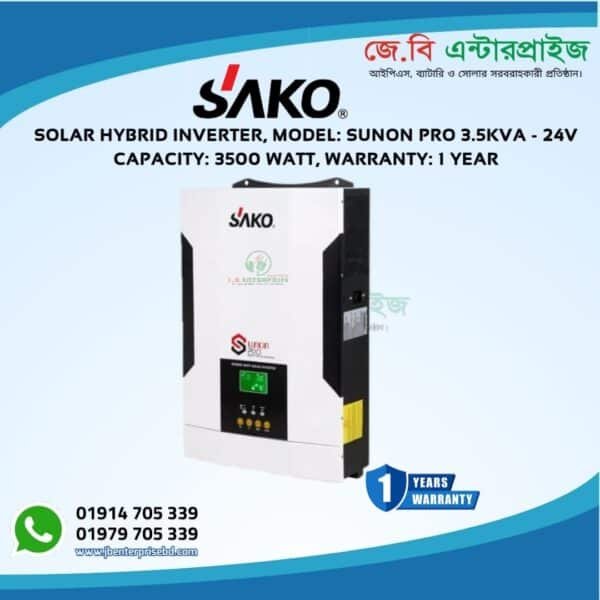

SAKO SOLAR HYBRID INVERTER 3.5 KVA 24V MPPT

The Sako Sunon Pro series is a hybrid inverter or charger that combines the functions of a 100A MPPT solar charger and a battery charger to generate electricity. It has Maximum Power Point Tracking (MPPT) technology that can be used to extract the maximum available power from the PV module under certain conditions. It has a smart LCD setting which can set working mode, charge current, charge voltage etc. It combines solar systems, AC utilities, and battery power sources to provide uninterrupted power. Also protects against overload, short circuit and deep discharge.

TECHNICAL PARAMETERS:

• Rated Power: 3500VA / 3500W
• Features
  • Pure sine wave output
  • Cold start function
  • Built-in MPPT solar charge controller
  • MAX PV Array Open Circuit Voltage: 450V
  • Support USB, RS485 monitoring function WIFI remote monitoring (optional)
• Input
  • Voltage: 230VAC
  • Selectable Voltage Range
    • UPS: 170-280VAC
    • Appliances: 90-280VAC
  • Frequency Range; 50Hz/60Hz(Auto sensing)
• Output
  • AC Voltage Regulation (Batt. Model): 230VAC±5%
  • Surge Power: 7000VA
  • Efficiency(Peak): 90%
  • Transfer Time:
    • UPS: 10MS
    • Appliances: 20MS
  • Pure sine wave Wave form
  • No load current: 1.0A
• Battery
  • Battery voltage: 24VDC
  • Low battery alarming voltage: 22.0VDC
  • Low battery cut off protection voltage: 21VDC
  • Low battery recovery voltage: 23.0VDC
  • Floating Charge Voltage: 27VDC
  • Overcharge Protection: 32VDC
• MPPT Solar Charger & AC Charger
  • Maximum PV Array Power: 5000W
  • MPPT Range at Operation Voltage: 120-450VDC
  • Maximum PV Array Open Circuit Voltage: 500DC
  • Number of MPPT trackers/Max output current: 100A
  • Maximum AC Charge Current: 60A
  • Maximum Charge Current: 100A
  • Maximum Efficiency: 98%
• Best Panel configuration
  • 300Wp x 9pcs x 36V (2700Wp) x 2Parallel
• Physical
  • Dimension D x W x H: 481 x 313 x 117mm
  • Net Weight: 9.8 Kg
  • Gross Weight: 11 Kg
• Operating Environment
  • Humidity: 5 to 95% Relative Humidity (Non-condensing)
  • Operation Temperature: -10°C-50°C
